Aircraft Containers: LD 8
DQF & DQN Containers
LD 8 Air Cargo Containers | DQF Containers | DQN Containers
LD 8 Air Cargo Containers are a widely utilized staple of the airline, air freight as well as material handling industry. Air Cargo Containers, commonly referred to as ULDs, allow for effective transport and loading/unloading of travel luggage, parcels and also air freight from wide-body airplanes, safely and securely as possible.
Being one of the most commonly used full-width ULD Containers, the LD 8 Air Cargo Container offers a large volume capacity of 244 cubic feet (Standard/DQF), while the forkliftable DQN model has an interior volume capacity of 224.5 cubic feet. The LD 8 Containers are typically used to fill certified hold compartments on planes such as the B767-200, B767-300, B787's and also different other wide-body airplane.
Granger's 20 year record of positive outcomes of polyethylene air cargo containers helped create the development and demand of the exclusive LD 2, LD 3 and LD 8 Air Cargo Containers. This 20 year proof positive experience allowed Granger to create a hybrid container that features a sector leading aluminum base, with reduced hardware which allow for faster and easier airworthiness assessments. The increase in operations efficiencies, combined with reduced maintenance and lighter tare weights could make major positive impacts to businesses bottom lines.

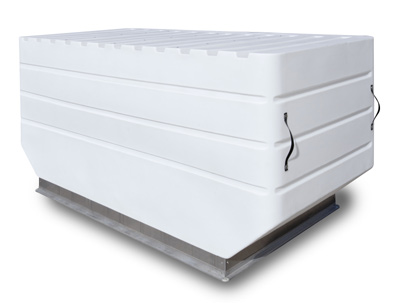

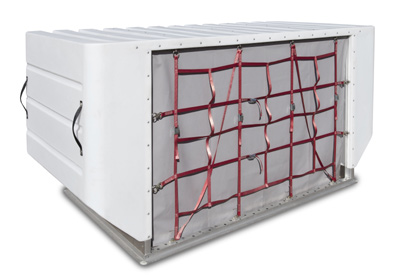

LD 8 DQF Air Cargo Container
LD 8 DQF Technical Specifications
Technical Specifications | ||
TSO | N/A | |
IATA | LD-8/DQF | |
SPEC. | AS 1677 | |
Granger Aerospace P/N | GA2-0108-2 | |
Base size | 2438 mm x 1534 mm | 96.0 in x 60.4 in |
Height | 1625 mm | 64 in |
Roof length | 3175 mm | 125 in |
Max. gross weight | 2449 kg | 5400 lb |
Internal volume | 6.9 cu m | 244 cu. ft |
External volume | 7.5 cu m | 265 cu ft |
Door opening | 2254 mm x 1462 mm | 88.75 in x 57.56 in |
Tare weight from | 116.5 kg | 257 lb |

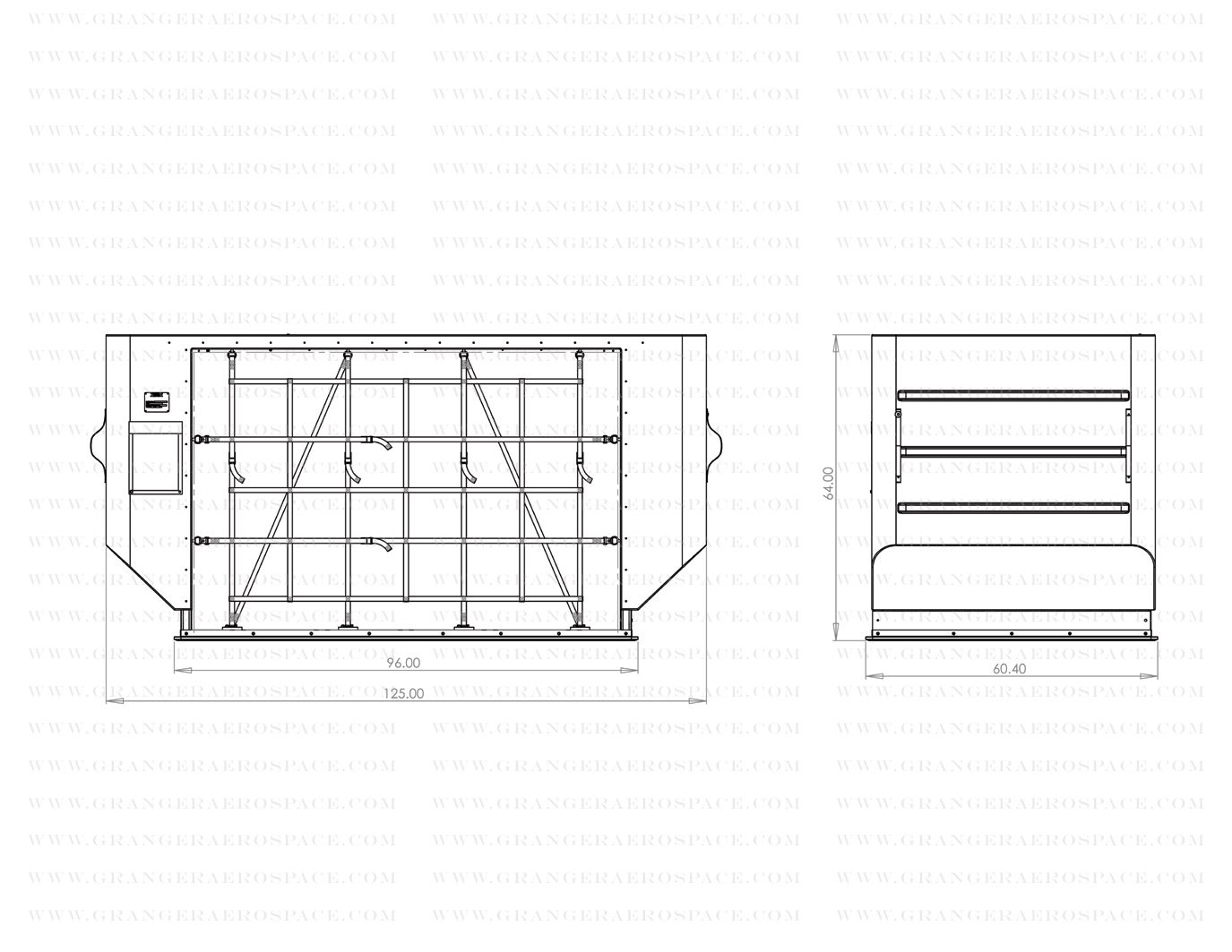

LD 8 DQF Dimensional Drawings
LD 8 DQF Features:
LD 8 DQF/DQN Information
LD 8 DQN Air Cargo Container
LD 8 DQN Technical Specifications
Technical Specifications | ||
TSO | N/A | |
IATA | LD-8/DQN | |
SPEC. | AS 1677 | |
Granger Aerospace P/N | GA2-0108-3 | |
Base size | 2438 mm x 1534 mm | 96.0 in x 60.4 in |
Height | 1625 mm | 64 in |
Roof length | 3175 mm | 125 in |
Max. gross weight | 2449 kg | 5400 lb |
Internal volume | 6.4 cu m | 224.5 cu. ft |
External volume | 7.5 cu m | 265 cu ft |
Door opening | 2254 mm x 1462 mm | 88.75 in x 57.56 in |
Tare weight from | 169.6 kg | 374 lb |
LD 8 DQN Dimensional Drawings
LD 8 DQN Features:
LD 8 DQF/DQN Information
