Aircraft Containers: LD 3 AKE Containers
LD 3 AKE Air Cargo Containers
Click on any of the thumbnail images below to display the larger image in the LD 3 AKE Air Cargo Container Image Gallery.

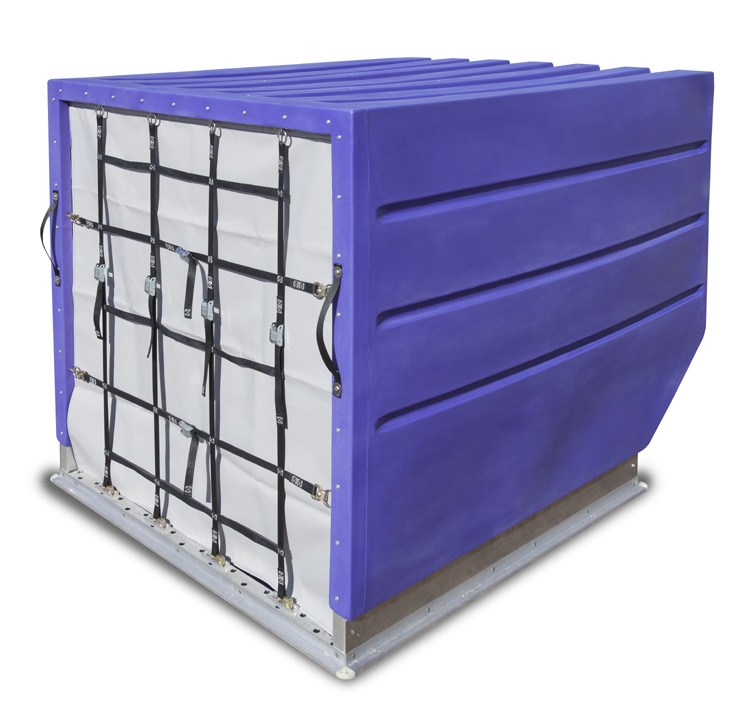

Granger Aerospace LD 3 AKE Air Cargo Container
|SAE AS 36100 class
||NAS 3610 (2K2C)
|Granger Aerospace P/N
||1534 x 2438 mm
||61.5 in x 60.4 in
|Max. gross weight
||5.7 cu m
||150 cu ft
||6.1 cu m
||166 cu ft
||2298 x 1532 mm
||53.13 in x 57.75 in
|Tare weight from
|| 84.8 kg
|| 187 lb
LD 3 AKE Air Cargo Container Ultimate Load Test
Watch the video above and see the Granger Plastics Air Cargo Containers successfully complete the FAA's Ultimate Load Testing. Watch as the LD 3 Air Cargo Container completes the loaded test!

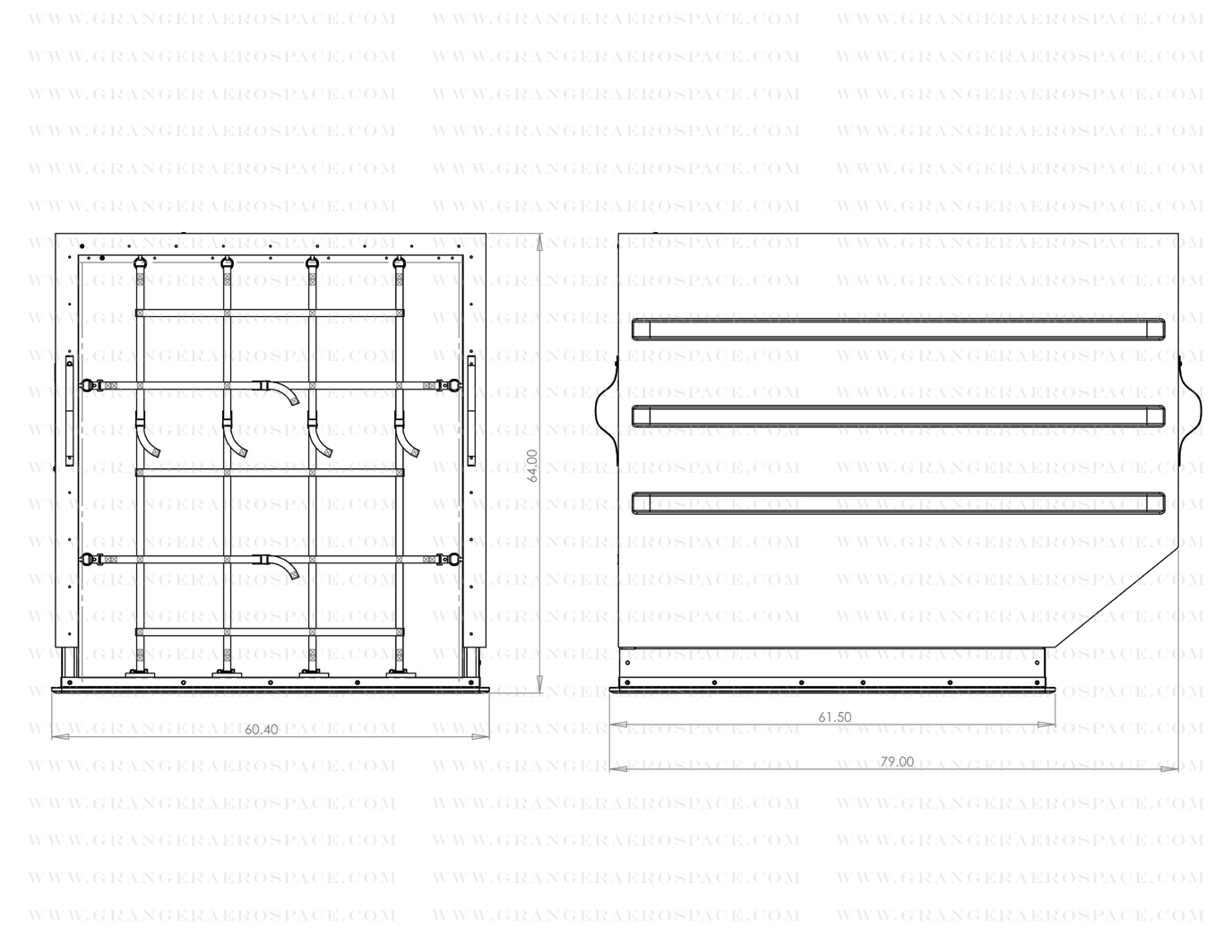

LD 3 AKE Dimensional Drawings
Click below to download LD 3 AKE Dimensional PDF
Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
The LD-3 Body is weld-able
The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
Granger Aerospace Products cargo containers are robust.
No aluminum body panels to patch.
No aluminum body frames to replace.
Lighter weight, less down time and lower repair costs equals lower cost of ownership.
Fewer fasteners to replace.
Unique design allows for faster repairs.
Less spare parts to keep in stock.
Granger Aerospace Products offers alternative solutions for your ULD needs.
It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
It’s our goal to offer more choices to our customers
Through or focus on technology and research, we are continually making improvements to our design.
Our customers save fuel by using robust as well as cost-efficient lightweight containers.
LD 3 AKE Information
Click below to download LD 3 AKE Technical PDF
