Aircraft Containers: LD 2
DPE & DPN Containers
LD 2 Air Cargo Containers | DPE Containers | DPN Containers
A timeless and conventional element of the Air Cargo industry is the LD 2 Air Cargo Containers, likewise called DPE and DPN ULD's. The LD 2 Air Cargo Containers feature a single piece polymer body, which offers a remarkable decrease of maintenance expenditures and down time, as the rotationally molded shells offer superior toughness over antiquated containers, such as aluminum, polycarbonate and fiberglass. The solitary piece polymer shell is available in a wide range of colors, including custom corporate colors for marketing and branding purposes, as well as simple recognition and increased operations efficiencies.
Featuring lighter tare weights than the majority of, the LD 2 units provide a straight savings in energy consumption, carbon credit ratings (where relevant) and also least expensive total price of ownership.
Click on any of the thumbnail images below to display the larger image in the LD 2 DPE Air Cargo Container Image Gallery.
Granger Aerospace LD 2 DPE Air Cargo Container
Technical Specifications
|
TSO |
|
N/A |
IATA |
|
LD-2/DPE |
NAS Specification |
|
AS 1677 |
Granger Aerospace P/N |
|
GA2-0102-2 |
Base size |
1534 mm x 1562 mm |
60.4 in x 61.5 in |
Height |
1625 mm |
64 in |
Roof length |
1562 mm |
61.5 in |
Max. gross weight |
1224 kg |
2700 lb |
Internal volume |
3.5 cu m |
123 cu ft |
External volume |
3.65 cu m |
129 cu ft |
Door opening |
1010 mm x 1480 mm |
39.75 in. x 58.25 in |
Tare weight from |
72.1 kg |
159 lb |
LD 2 DPE Dimensional Drawings
Click below to download LD 2 DPE Dimensional PDF
Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
The LD-2 Body is weld-able
The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
Granger Aerospace Products cargo containers are robust.
No aluminum body panels to patch.
No aluminum body frames to replace.
Lighter weight, less down time and lower repair costs equals lower cost of ownership.
Enhanced Threshold.
Fewer fasteners to replace.
Unique design allows for faster repairs.
Less spare parts to keep in stock.
Granger Aerospace Products offers alternative solutions for your ULD needs.
It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
It’s our goal to offer more choices to our customers
Through or focus on technology and research, we are continually making improvements to our design.
Our customers save fuel by using robust as well as cost-efficient lightweight containers.
LD 2 DPE Information
Click below to download LD 2 DPE Technical PDF

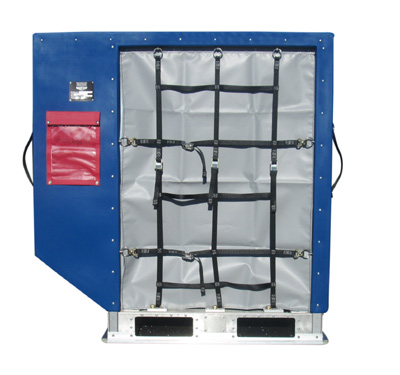

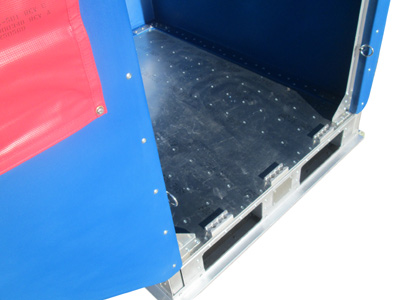

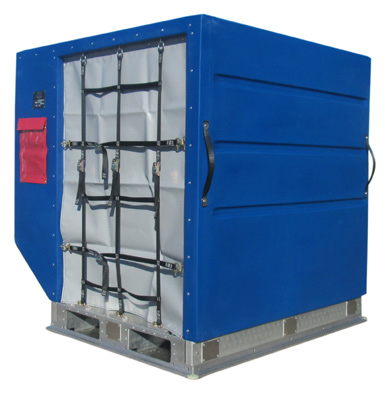

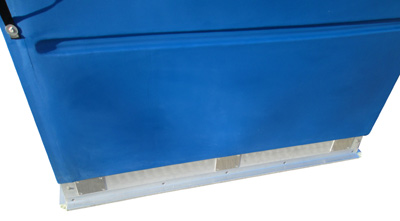

Granger Aerospace LD 2 DPN Air Cargo Container
Technical Specifications
|
IATA |
|
LD-2/DPN |
NAS Specification |
|
AS 1677 |
Granger Aerospace P/N |
|
GA2-0102-3 |
Base size |
1534 x 2438 mm |
79.0 in x 60.4 in |
Height |
1625 mm |
64.0 in |
Roof length |
2438 mm |
79.0 in |
Max. gross weight |
2449 kg |
3500 lb |
Internal volume |
3.5 cu m |
125 cu ft |
External volume |
4.7 cu m |
166 cu ft |
Door opening |
2298 x 1532 mm |
53.13 in x 57.75 in |
Tare weight from |
118.8 kg |
262 lbs. |

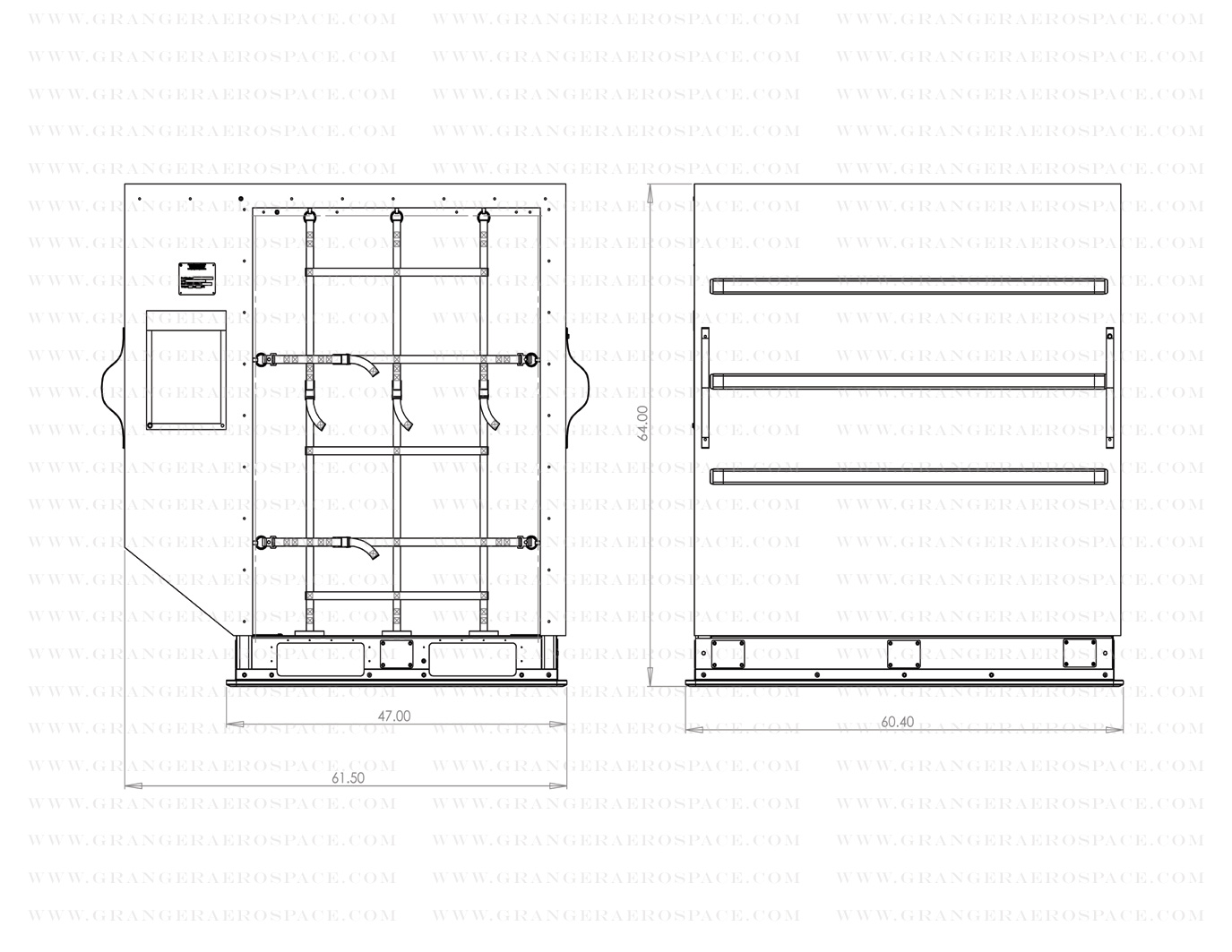

LD 2 DPN Dimensional Drawings
Click below to download LD 2 DPN Dimensional PDF
LD 2 DPN Features:
Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
The LD-2 Body is weld-able
The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
Granger Aerospace Products cargo containers are robust.
No aluminum body panels to patch.
No aluminum body frames to replace.
Lighter weight, less down time and lower repair costs equals lower cost of ownership.
Enhanced Threshold.
Fewer fasteners to replace.
Unique design allows for faster repairs.
Less spare parts to keep in stock.
Granger Aerospace Products offers alternative solutions for your ULD needs.
It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
It’s our goal to offer more choices to our customers
Through or focus on technology and research, we are continually making improvements to our design.
Our customers save fuel by using robust as well as cost-efficient lightweight containers.
LD 2 DPN Information
Click below to download LD 2 DPN Technical PDF
