Aircraft Containers: LD 2 DPE Containers

DPE Containers

LD 2 Containers, ULD 2, DPE Containers, DPN Containers

LD 2 DPE Air Cargo Containers

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Maecenas ac quam risus, at tempus justo. Sed dictum rutrum massa eu volutpat. Quisque vitae hendrerit sem. Pellentesque lorem felis, ultricies a bibendum id, bibendum sit amet nisl. Mauris et lorem quam. Maecenas rutrum imperdiet vulputate. Nulla quis nibh ipsum, sed egestas justo. Morbi ut ante mattis orci convallis tempor. Etiam a lacus a lacus pharetra porttitor quis accumsan odio. Sed vel euismod nisi. Etiam convallis rhoncus dui quis euismod. Maecenas lorem tellus, congue et condimentum ac, ullamcorper non sapien. Donec sagittis massa et leo semper a scelerisque metus faucibus. Morbi congue mattis mi. Phasellus sed nisl vitae risus tristique volutpat. Cras rutrum commodo luctus.

Phasellus odio risus, faucibus et viverra vitae, eleifend ac purus. Praesent mattis, enim quis hendrerit porttitor, sapien tortor viverra magna, sit amet rhoncus nisl lacus nec arcu. Suspendisse laoreet metus ut metus imperdiet interdum aliquam justo tincidunt. Mauris dolor urna, fringilla vel malesuada ac, dignissim eu mi. Praesent mollis massa ac nulla pretium pretium. Maecenas tortor mauris, consectetur pellentesque dapibus eget, tincidunt vitae arcu. Vestibulum purus augue, tincidunt sit amet iaculis id, porta eu purus.

LD 2 DPE Air Cargo Container

Click on any of the thumbnail images below to display the larger image in the LD 2 DPE Air Cargo Container Image Gallery.

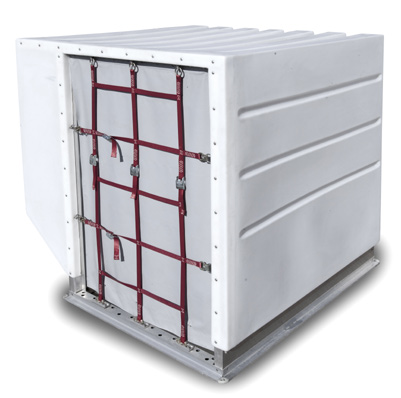

LD 2 DPE Air Cargo Container

Granger Aerospace LD 2 DPE Air Cargo Container
LD 2, Granger LD 2, Granger Aerospace LD 2, LD 2 DPE, LD 2 Forkliftable
LD 2 DPE, LD 2, DPE Container, Granger Aerospace ld 2, Granger Plastics LD 2

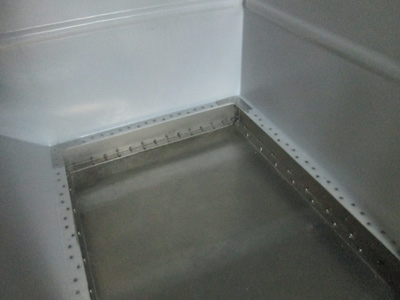

Granger Aerospace LD 2, LD 2, Granger LD 2 DPE

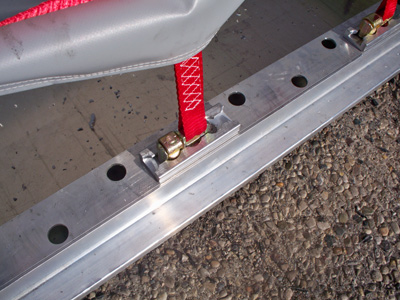

LD 2 DPE Base, LD 2 DPE Air Cargo Container, LD 2, DPE Container, DPE Air Cargo, Granger Aerospace LD 2 DPE

LD 2 DPE Technical Specifications

Technical Specifications
TSO   N/A
IATA   LD-2/DPE
NAS Specification   AS 1677
Granger Aerospace P/N   GA2-0102-2
Base size 1534 mm x 1562 mm 60.4 in x 61.5 in
Height 1625 mm 64 in
Roof length 1562 mm 61.5 in
Max. gross weight 1224 kg 2700 lb
Internal volume 3.5 cu m 123 cu ft
External volume 3.65 cu m 129 cu ft
Door opening 1010 mm x 1480 mm 39.75 in. x 58.25 in
Tare weight from 72.1 kg 159 lb

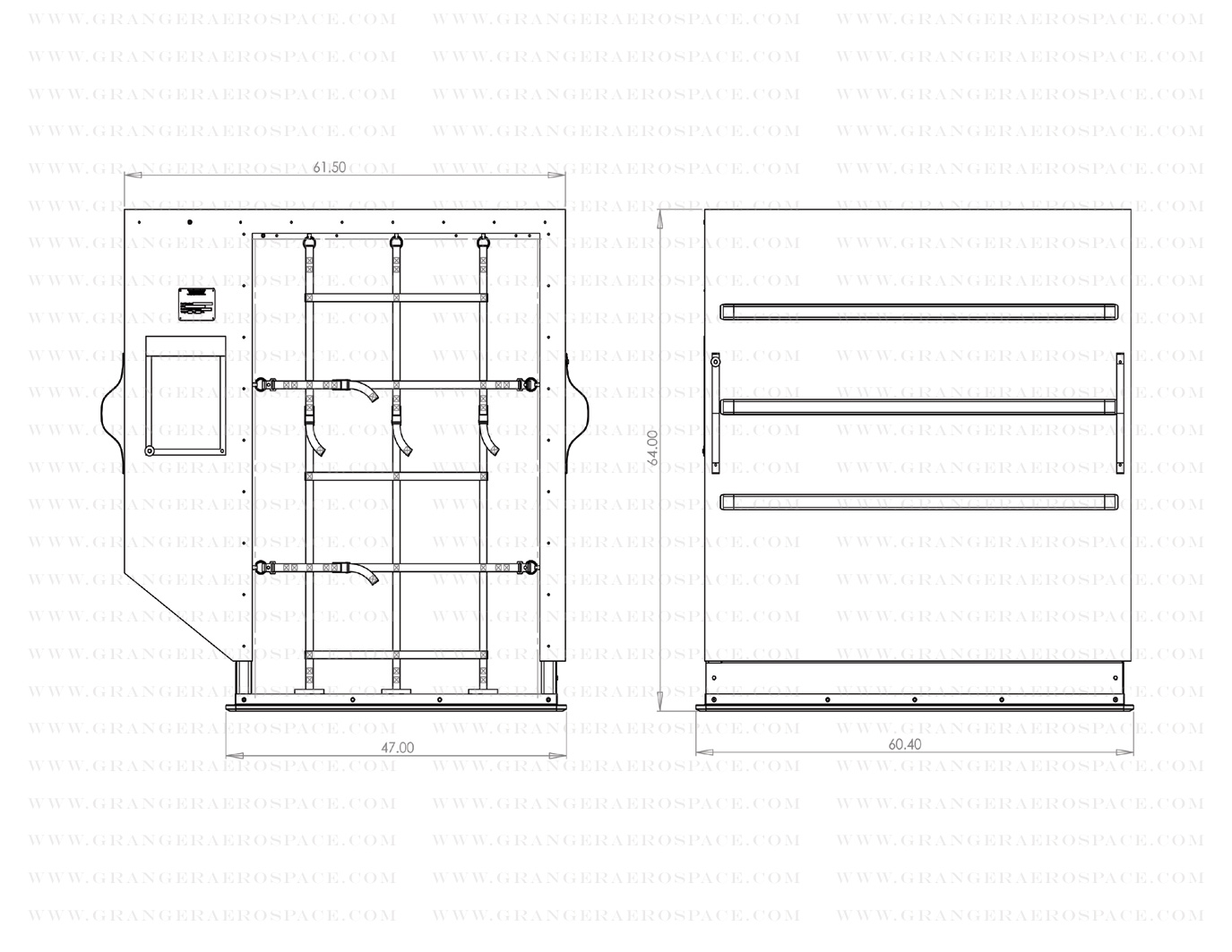

LD 2 DPE Dimensional Drawings

Click below to download LD 2 DPE Dimensional PDF
LD 2 Dimensions, LD 2 Air Cargo Container Dimensions, DPE dimensions


LD 2 DPE Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-2 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

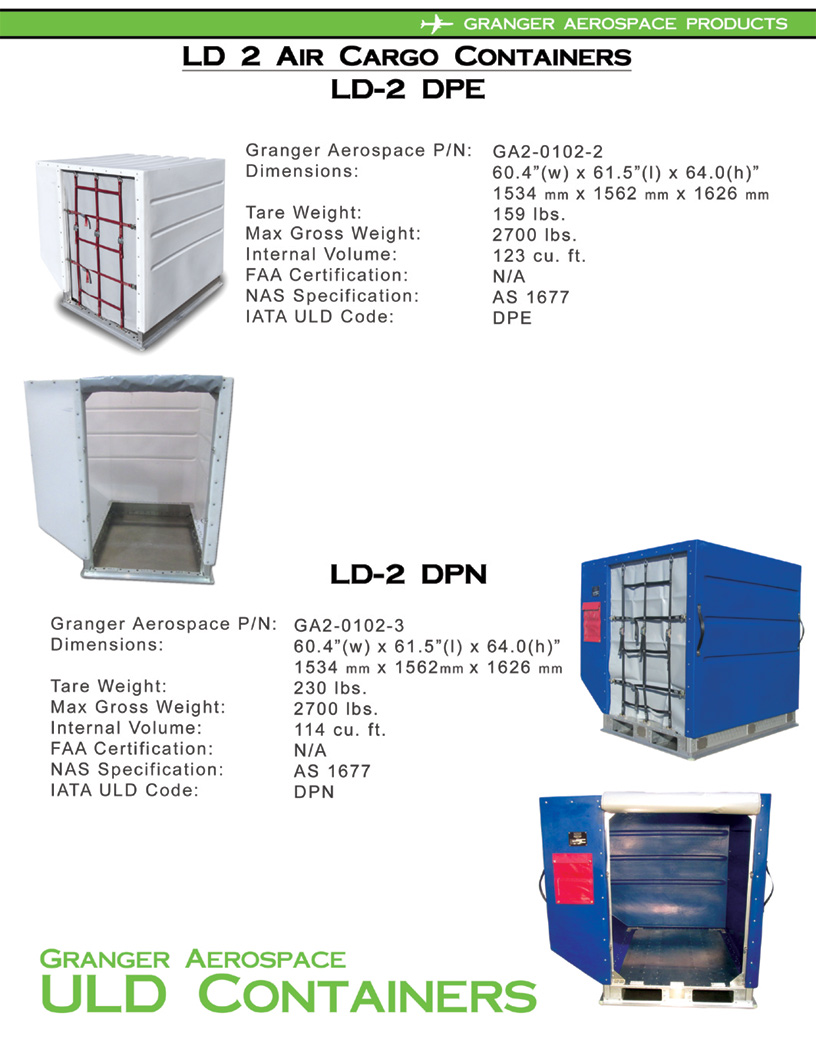

    • LD 2 DPE Information

    Click below to download LD 2 DPE Technical PDF
    LD 2 Specifications, Dimensions, LD 2 Air Cargo Container Dimensions, DPE Dimensions, DPN dimensions














  •
