Aircraft Containers: LD 8 DQN
DQN Containers
LD 8 DQN Air Cargo Containers
LD 8 DQN Air Cargo Container
Granger Aerospace LD 8 DQN Air Cargo Container

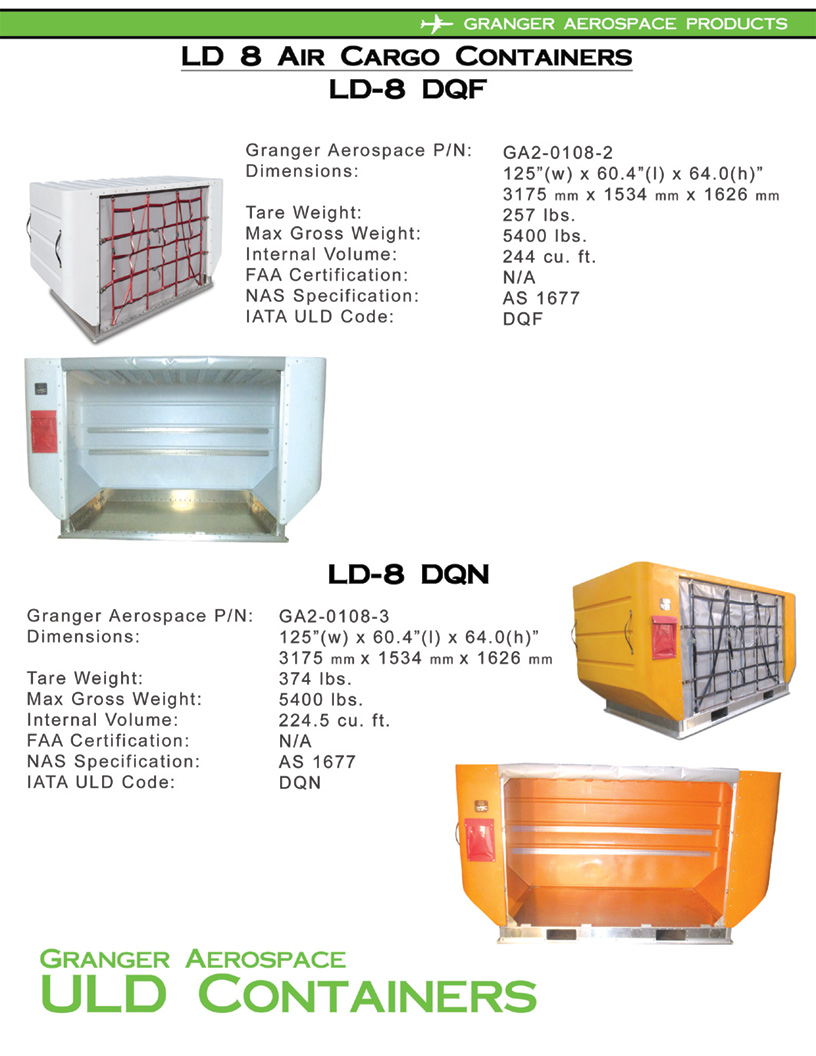

LD 8 DQN Technical Specifications
Technical Specifications | ||
TSO | N/A | |
IATA | LD-8/DQN | |
SPEC. | AS 1677 | |
Granger Aerospace P/N | GA2-0108-3 | |
Base size | 2438 mm x 1534 mm | 96.0 in x 60.4 in |
Height | 1625 mm | 64 in |
Roof length | 3175 mm | 125 in |
Max. gross weight | 2449 kg | 5400 lb |
Internal volume | 6.4 cu m | 224.5 cu. ft |
External volume | 7.5 cu m | 265 cu ft |
Door opening | 2254 mm x 1462 mm | 88.75 in x 57.56 in |
Tare weight from | 169.6 kg | 374 lb |

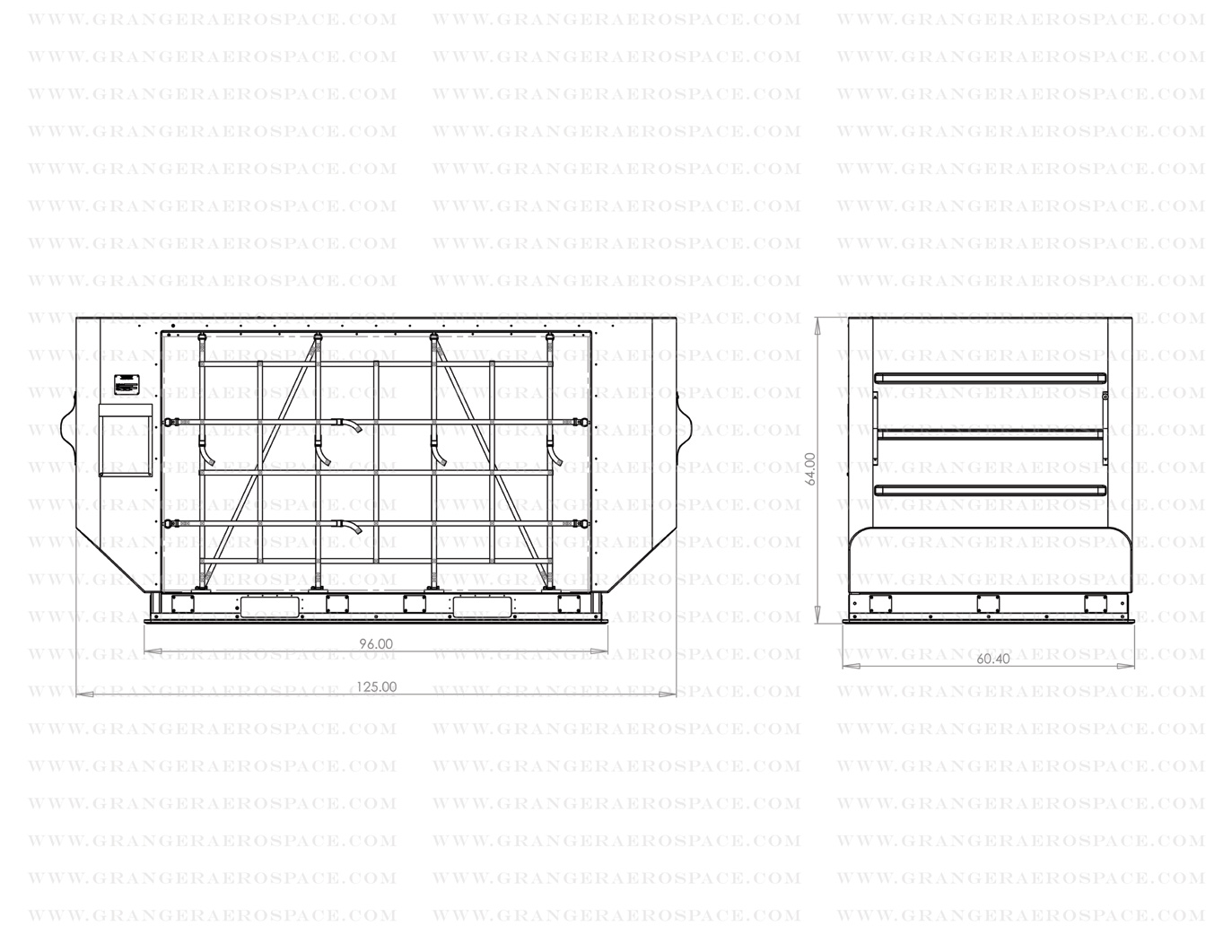

LD 8 DQN Dimensional Drawings
LD 8 DQN Features:
Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
The LD-8 Body is weld-able
The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
Granger Aerospace Products cargo containers are robust.
No aluminum body panels to patch.
No aluminum body frames to replace.
Lighter weight, less down time and lower repair costs equals lower cost of ownership.
Enhanced Threshold.
Fewer fasteners to replace.
Unique design allows for faster repairs.
Less spare parts to keep in stock.
Granger Aerospace Products offers alternative solutions for your ULD needs.
It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
It’s our goal to offer more choices to our customers
Through or focus on technology and research, we are continually making improvements to our design.
Our customers save fuel by using robust as well as cost-efficient lightweight containers.
